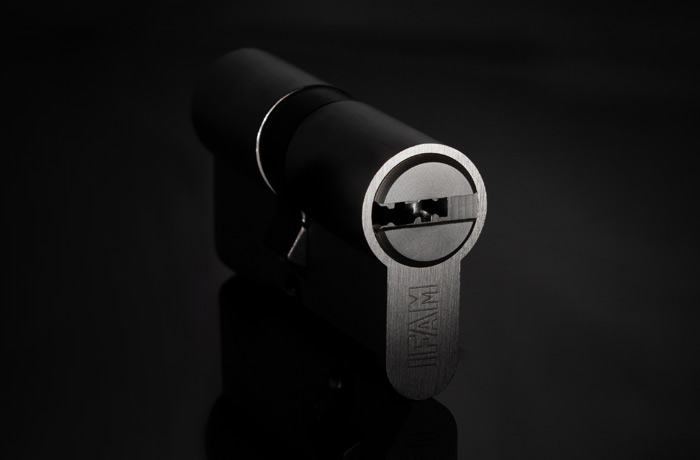

Platinum M Series cylinders

The new range of IFAM security cylinders

The Platinum M series offers the best features within the medium range of security cylinder locks. The new features of the Platinum M cylinders include double anti-bumping with double pins and double springs, and a significant increase in key mastering combinations. The enormous measurement variety of the M/F6S series is also maintained, as well as key compatibility with these products.

Download file IRIDIUM AND PLATINUM CYLINDER SERIES LEAFLET pdf 3.04 MB

Download file TECHNICAL SHEET. PLATINUM M SERIES pdf 1.13 MB

Download file INSTRUCCIONES IRIDIUM&PLATINUM pdf 147.62 kB

Features

Profile: – European.
Body: – Double anti-bumping system with double pins and double springs.
– Double anti-drill protection: protective bars on the front and on the core.
– Anti-pick protection.
– Brass and matt nickel finishes.
Internal elements: – Six toughened pins with thousands of combinations. More key mastering combinations than the M/F6S series.
– Made from extruded brass.
– Stainless steel springs.
Cam: – Available with standard DIN cam (15 mm) or short cam (13.2 mm).
Available cylinder types: – Single or double clutch.
– Half cylinders
– Standard cylinders
– Cylinders with door knob
– With adjustable axis
– With adjustable tab (for panic bars)
– With adjustable cam
Keys: – Security dimple key with millions of combinations.
– Supplied with five keys.
– Includes a reproduction card for future key duplications.
– Key compatible with M+/FS6+ Anti-snap series and M/F6S series cylinders; Huno80 padlocks; and CS88 and CS88LV rim locks
Presentation: – Box packed (individual and group boxes).
– Blister packed.

Dimensions

SINGLE CLUTCH. STANDARD DIN CAM: 15mm. BOX

L A B
PTM1030L 40 10 30
PTM1030N 40 10 30
PTM1040L 50 10 40
PTM1040N 50 10 40
PTM1050L 60 10 50
PTM3030L 60 30 30
PTM3030N 60 30 30
PTM3035L 65 30 35
PTM3035N 65 30 35
PTM3040L 70 30 40
PTM3040N 70 30 40
PTM3045L 75 30 45
PTM3045N 75 30 45
PTM3050L 80 30 50
PTM3050N 80 30 50
PTM3055N 85 30 55
PTM3060L 90 30 60
PTM3060N 90 30 60
PTM3070L 100 30 70
PTM3070N 100 30 70
PTM3075N 105 30 75
PTM3080N 110 30 80
PTM3535L 70 35 35
PTM3535N 70 35 35
PTM3540L 75 35 40
PTM3540N 75 35 40
PTM3545L 80 35 45
PTM3545N 80 35 45
PTM3550L 85 35 50
PTM3550N 85 35 50
PTM3555N 90 35 55
PTM3560N 95 35 60
PTM3565N 100 35 65
PTM4040L 80 40 40
PTM4040N 80 40 40
PTM4045N 85 40 45
PTM4050L 90 40 50
PTM4050N 90 40 50
PTM4060L 100 40 60
PTM4060N 100 40 60
PTM4070N 110 40 70
PTM4545L 90 45 45
PTM4545N 90 45 45
PTM4550N 95 45 50
PTM4555N 100 45 55
PTM4560N 105 45 60
PTM5050L 100 50 50
PTM5050N 100 50 50
PTM5060L 110 50 60
PTM5060N 110 50 60
PTM5555N 110 55 55
PTM6060L 120 60 60
PTM6060N 120 60 60



SINGLE CLUTCH. SHORT CAM: 13mm. BOX

L A B
PTM1030LC 40 10 30
PTM1030NC 40 10 30
PTM1040LC 50 10 40
PTM1040NC 50 10 40
PTM3030LC 60 30 30
PTM3030NC 60 30 30
PTM3035LC 65 30 35
PTM3035NC 65 30 35
PTM3040LC 70 30 40
PTM3040NC 70 30 40
PTM3045LC 75 30 45
PTM3045NC 75 30 45
PTM3050LC 80 30 50
PTM3050NC 80 30 50
PTM3060LC 90 30 60
PTM3060NC 90 30 60
PTM3070LC 100 30 70
PTM3070NC 100 30 70
PTM3535LC 70 35 35
PTM3535NC 70 35 35
PTM3540LC 75 35 40
PTM3540NC 75 35 40
PTM3545LC 80 35 45
PTM3545NC 80 35 45
PTM3550LC 85 35 50
PTM3550NC 85 35 50
PTM4040LC 80 40 40
PTM4040NC 80 40 40
PTM4050LC 90 40 50
PTM4050NC 90 40 50
PTM4060LC 100 40 60
PTM4060NC 100 40 60
PTM4545LC 90 45 45
PTM4545NC 90 45 45
PTM5050LC 100 50 50
PTM5050NC 100 50 50
PTM6060NC 120 60 60



SINGLE CLUTCH. STANDARD DIN CAM: 15mm. BLISTER

L A B
PTM1030L 40 10 30
PTM1030N 40 10 30
PTM1040L 50 10 40
PTM1040N 50 10 40
PTM3030L 60 30 30
PTM3030N 60 30 30
PTM3035L 65 30 35
PTM3035N 65 30 35
PTM3040L 70 30 40
PTM3040N 70 30 40
PTM3045L 75 30 45
PTM3045N 75 30 45
PTM3050L 80 30 50
PTM3050N 80 30 50
PTM3060L 90 30 60
PTM3060N 90 30 60
PTM3535L 70 35 35
PTM3535N 70 35 35
PTM3540L 75 35 40
PTM3540N 75 35 40
PTM3545L 80 35 45
PTM3545N 80 35 45
PTM3550L 85 35 50
PTM3550N 85 35 50
PTM4040L 80 40 40
PTM4040N 80 40 40
PTM4050L 90 40 50
PTM4050N 90 40 50
PTM4545L 90 45 45
PTM4545N 90 45 45



SINGLE CLUTCH. SHORT CAM: 13mm. BLISTER

L A B
PTM1030LC 40 10 30
PTM1030NC 40 10 30
PTM1040LC 50 10 40
PTM3030LC 60 30 30
PTM3030NC 60 30 30
PTM3035LC 65 30 35
PTM3035NC 65 30 35
PTM3040LC 70 30 40
PTM3040NC 70 30 40
PTM3045LC 75 30 45
PTM3050LC 80 30 50
PTM3060LC 90 30 60
PTM3060NC 90 30 60
PTM3535LC 70 35 35
PTM3535NC 70 35 35
PTM3540LC 75 35 40
PTM3540NC 75 35 40
PTM3545LC 80 35 45
PTM3545NC 80 35 45
PTM3550LC 85 35 50
PTM3550NC 85 35 50
PTM4040LC 80 40 40
PTM4040NC 80 40 40
PTM4050LC 90 40 50
PTM4050NC 90 40 50
PTM4545LC 90 45 45
PTM4545NC 90 45 45



THUMB TURN. STANDARD DIN CAM: 15mm. BOX

L A B
PTMP3030L 60 30 30
PTMP3030N 60 30 30
PTMP3040L 70 30 40
PTMP3040N 70 30 40
PTMP3050L 80 30 50
PTMP3050N 80 30 50
PTMP3060L 90 30 60
PTMP3060N 90 30 60
PTMP3080N 110 30 80
PTMP4030L 70 30 40
PTMP4030N 70 30 40
PTMP5030L 80 30 50
PTMP5030N 80 30 50
PTMP3535L 70 35 35
PTMP3535N 70 35 35
PTMP5035N 85 35 50
PTMP4040L 80 40 40
PTMP4040N 80 40 40
PTMP4060N 100 40 60
PTMP4545L 90 45 45
PTMP4545N 90 45 45
PTMP5050N 100 50 50



THUMB TURN. STANDARD DIN CAM: 13mm. BOX

L A B
PTMP3030LC 60 30 30
PTMP3030NC 60 30 30
PTMP3040LC 70 30 40
PTMP3040NC 70 30 40
PTMP3050LC 80 30 50
PTMP3050NC 80 30 50
PTMP4030NC 70 30 40
PTMP3535LC 70 35 35
PTMP3535NC 70 35 35
PTMP4040LC 80 40 40
PTMP4040NC 80 40 40



THUMB TURN. STANDARD DIN CAM: 15mm. BLISTER

L A B
PTMP3030N 60 30 30
PTMP3040N 70 30 40
PTMP3050N 80 30 50
PTMP3060N 90 30 60
PTMP4030N 70 30 40
PTMP4040N 80 40 40



THUMB TURN. SHORT CAM: 13mm. BLISTER

L A B
PTM1040NC 50 10 40
PTM3045NC 75 30 45
PTM3050NC 80 30 50



DOUBLE CLUTCH. STANDARD DIN CAM: 15mm. BOX

L A B
PTM3030LD 60 30 30
PTM3030ND 60 30 30
PTM3035LD 65 30 35
PTM3035ND 65 30 35
PTM3040LD 70 30 40
PTM3040ND 70 30 40
PTM3045LD 75 30 45
PTM3045ND 75 30 45
PTM3050LD 80 30 50
PTM3050ND 80 30 50
PTM3060LD 90 30 60
PTM3060ND 90 30 60
PTM3070LD 100 30 70
PTM3070ND 100 30 70
PTM3535LD 70 35 35
PTM3535ND 70 35 35
PTM3540LD 75 35 40
PTM3540ND 75 35 40
PTM3545LD 80 35 45
PTM3545ND 80 35 45
PTM3550LD 85 35 50
PTM3550ND 85 35 50
PTM4040LD 80 40 40
PTM4040ND 80 40 40
PTM4050LD 90 40 50
PTM4050ND 90 40 50
PTM4060LD 100 40 60
PTM4060ND 100 40 60
PTM4545LD 90 45 45
PTM4545ND 90 45 45
PTM5050LD 100 50 50
PTM5050ND 100 50 50
PTM5060LD 110 50 60
PTM5060ND 110 50 60
PTM6060LD 120 60 60
PTM6060ND 120 60 60



DOUBLE CLUTCH. SHORT CAM: 13mm. BOX

L A B
PTM3030LCD 60 30 30
PTM3030NCD 60 30 30
PTM3035LCD 65 30 35
PTM3035NCD 65 30 35
PTM3040LCD 70 30 40
PTM3040NCD 70 30 40
PTM3045LCD 75 30 45
PTM3045NCD 75 30 45
PTM3050LCD 80 30 50
PTM3050NCD 80 30 50
PTM3060LCD 90 30 60
PTM3060NCD 90 30 60
PTM3070LCD 100 30 70
PTM3070NCD 100 30 70
PTM3535LCD 70 35 35
PTM3535NCD 70 35 35
PTM3540LCD 75 35 40
PTM3540NCD 75 35 40
PTM3545LCD 80 35 45
PTM3545NCD 80 35 45
PTM3550LCD 85 35 50
PTM3550NCD 85 35 50
PTM4040LCD 80 40 40
PTM4040NCD 80 40 40
PTM4050LCD 90 40 50
PTM4050NCD 90 40 50
PTM4060LCD 100 40 60
PTM4060NCD 100 40 60
PTM5050LCD 100 50 50
PTM5050NCD 100 50 50



DOUBLE CLUTCH. STANDARD DIN CAM: 15mm. BLISTER

L A B
PTM3030LD 60 30 30
PTM3030ND 60 30 30
PTM3035LD 65 30 35
PTM3035ND 65 30 35
PTM3040LD 70 30 40
PTM3040ND 70 30 40
PTM3045LD 75 30 45
PTM3045ND 75 30 45
PTM3050LD 80 30 50
PTM3050ND 80 30 50
PTM3060LD 90 30 60
PTM3060ND 90 30 60
PTM3535LD 70 35 35
PTM3535ND 70 35 35
PTM3540LD 75 35 40
PTM3540ND 75 35 40
PTM3545LD 80 35 45
PTM3545ND 80 35 45
PTM3550LD 85 35 50
PTM3550ND 85 35 50
PTM4040LD 80 40 40
PTM4040ND 80 40 40
PTM4050LD 90 40 50
PTM4050ND 90 40 50
PTM4545LD 90 45 45
PTM4545ND 90 45 45



DOUBLE CLUTCH. SHORT CAM: 13mm. BLISTER

L A B
PTM3030LCD 60 30 30
PTM3030NCD 60 30 30
PTM3035LCD 65 30 35
PTM3035NCD 65 30 35
PTM3040LCD 70 30 40
PTM3040NCD 70 30 40
PTM3045LCD 75 30 45
PTM3045NCD 75 30 45
PTM3050LCD 80 30 50
PTM3050NCD 80 30 50
PTM3060LCD 90 30 60
PTM3060NCD 90 30 60
PTM3535LCD 70 35 35
PTM3535NCD 70 35 35
PTM3540LCD 75 35 40
PTM3540NCD 75 35 40
PTM3545LCD 80 35 45
PTM3545NCD 80 35 45
PTM3550LCD 85 35 50
PTM3550NCD 85 35 50
PTM4040LCD 80 40 40
PTM4040NCD 80 40 40
PTM4050LCD 90 40 50
PTM4050NCD 90 40 50



CYLINDER WITH ADJUSTABLE AXIS. CAM: 15mm. BOX

L A B
PTME3030L 60 30 30
PTME3030N 60 30 30
PTME3035L 65 30 35
PTME3035N 65 30 35
PTME3040L 70 30 40
PTME3040N 70 30 40
PTME3045L 75 30 45
PTME3045N 75 30 45
PTME3050L 80 30 50
PTME3050N 80 30 50
PTME3060L 90 30 60
PTME3060N 90 30 60
PTME3070L 100 30 70
PTME3070N 100 30 70



CYLINDER WITH ADJUSTABLE CAM. CAM: 15mm. BOX

L A B
PTM1030LA 40 10 30
PTM1030NA 40 10 30
PTM1040LA 50 10 40
PTM1040NA 50 10 40



CYLINDER WITH ADJUSTABLE TAB. CAM: 15mm. BOX

L A B
PTM1030LR 40 10 30
PTM1030NR 40 10 30
PTM1040LR 50 10 40
PTM1040NR 50 10 40
