D Series cylinder locks

Versatility with a great quality-price ratio

IFAM’s D Series cylinder locks are designed for customers seeking an easy and quality solution for their locks. Some of the advantages of D Series cylinders are the compatibility of their keys with other IFAM products and other associated services such as keying alike and master keying.

Download file D Series cylinder locks. Technical sheet pdf 184.25 kB

Features

Profile: – European.
Body: – Made of extruded brass.
– Brass and nickel-matt finishes.
Internal components: – 5 pins with thousands of differs.
– Drill resistant cotters.
–  Stainless steel springs.
Cam: – Available in standard DIN cam (15mm) and short cam (13,2mm.).
Opening / closure: – Standard system and thumb turn cylinders.

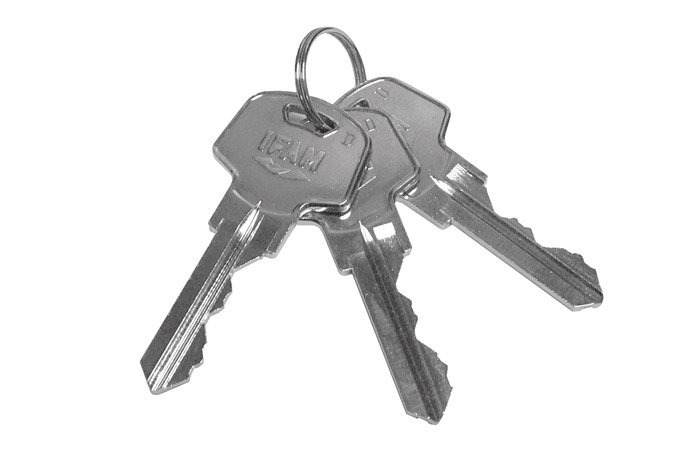

Keys: – Standard key.
– Supplied with 3 keys.
– Key compatible with: K50, Inox50, Max50, Serie Armoured and Serie U padlocks; B5/50 rim lock;  CS125 and CS126 locks.
Packaging: – Box and blister packed.

Dimensions

BOX PACKED

L A B Standard DIN cam
D1030L 40 10 30 15
D1030N 40 10 30 15
D1040N 50 10 40 15
D3030L 60 30 30 15
D3030N 60 30 30 15
D3040L 70 30 40 15
D3040N 70 30 40 15
D3535L 70 35 35 15
D3535N 70 35 35 15
D4040L 80 40 40 15
D4040N 80 40 40 15
D3050L 80 30 50 15
D3050N 80 30 50 15



L A B Short cam
D1030LC 40 10 30 13,2
D1030NC 40 10 30 13,2
D1040NC 50 10 40 13,2
D3030LC 60 30 30 13,2
D3030NC 60 30 30 13,2
D3040LC 70 30 40 13,2
D3040NC 70 30 40 13,2
D3535LC 70 35 35 13,2
D3535NC 70 35 35 13,2
D4040LC 80 40 40 13,2
D4040NC 80 40 40 13,2
D3050LC 80 30 50 13,2
D3050NC 80 30 50 13,2

L: Brass finish. / N: Nickel-matt finish. / LC: Brass finish. Short cam. / NC:Nickel-matt finish. Short cam.



BLISTER PACKED

L A B Standard DIN cam
D1030L 40 10 30 15
D1030N 40 10 30 15
D1040N 50 10 40 15
D3030L 60 30 30 15
D3030N 60 30 30 15
D3040L 70 30 40 15
D3040N 70 30 40 15
D3535L 70 35 35 15
D3535N 70 35 35 15
D4040L 80 40 40 15
D4040N 80 40 40 15
D3050L 80 30 50 15



L A B Short cam
D1030LC 40 10 30 13,2
D1030NC 40 10 30 13,2
D1040NC 50 10 40 13,2
D3030LC 60 30 30 13,2
D3030NC 60 30 30 13,2
D3040LC 70 30 40 13,2
D3040NC 70 30 40 13,2
D3535LC 70 35 35 13,2
D3535NC 70 35 35 13,2
D4040LC 80 40 40 13,2
D4040NC 80 40 40 13,2
D3050LC 80 30 50 13,2

L: Brass finish. / N: Nickel-matt finish. / LC: Brass finish. Short cam. / NC:Nickel-matt finish. Short cam.



THUMB TURN

L A B Standard DIN cam
DP3030L 60 30 30 15
DP3030N 60 30 30 15
DP3040L 70 30 40 15
DP3040N 70 30 40 15
DP3535L 70 35 35 15
DP3535N 70 35 35 15
DP4030N 70 40 30 15
DP3050L 80 30 50 15
DP4040L 80 40 40 15
DP4040N 80 40 40 15



L A B Short cam
DP3030LC 60 30 30 13,2
DP3030NC 60 30 30 13,2
DP3040LC 70 30 40 13,2
DP3040NC 70 30 40 13,2
DP3535LC 70 35 35 13,2
DP3535NC 70 35 35 13,2
DP3050LC 80 30 50 13,2
DP4040LC 80 40 40 13,2
DP4040N 80 40 40 13,2

L: Brass finish. / N: Nickel-matt finish. / LC: Brass finish. Short cam. / NC:Nickel-matt finish. Short cam.

Associated Services

  • Master keying service.
  • Keying alike service.
  • Certain key number service.
  • Unique key solution.
  • Assembly kit available (special for locksmiths).
