Z Series padlocks

Zinc alloy padlocks are especially resistant to the elements

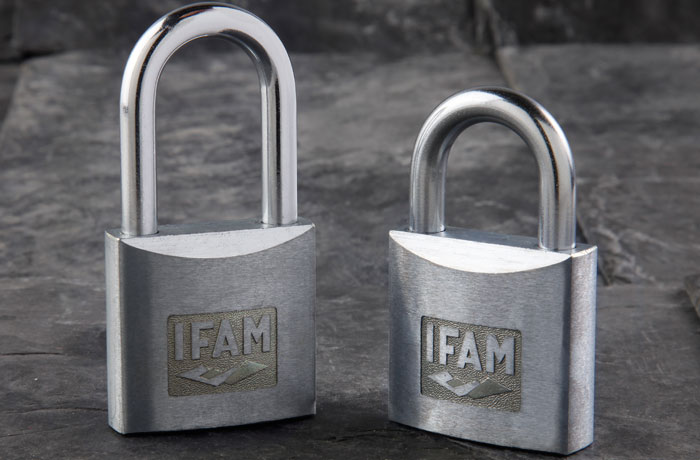

Manufactured using a strong zinc alloy, Z Series padlocks from IFAM are designed for offering a high resistance to the elements and to chemical products. The Z series is noteworthy for its different sizes, in normal shackle as well as long shackle, which make these padlocks an authentic wild card for use outdoors.

Download file technical sheet. z series padlocks pdf 197.28 kB

Features

Body:	– Made of zinc alloy, obtained using high precision die-cast.
Shackle:	– Made of chromed steel.
Opening / locking:	– Stainless steel springs.
Keys:	– Standard key. – Supplied with 2 keys.
Packaging:	– Box and blister packed. – Available 3 keyed alike padlock pack of the Z20 normal shackle model. Blister packed.

Dimensions

NORMAL SHACKLE

	Z15	Z20	Z25	Z35	Z45	Z55
Body base (A):	17.5	22	26.5	34.5	44	54
Body height (B):	17.5	22.5	27	34.5	41.5	44,5
Shackle height (C):	10.5	13	14.5	19.5	25	36
Shackle diameter (D):	3	4	5	6	7,5	8,5
Shackle span (L):	8	11	12	17	23	30
Body thickness (H):	8	11	12	14.5	17.3	19.6

LONG SHACKLE

	Z20	Z25	Z35	Z45
Body base (A):	22	26.5	34.5	44
Body height (B):	22.5	27	34.5	41.5
Shackle height (C):	21	25.5	29	40
Shackle diameter (D):	4	5	6	7,5
Shackle span (L):	11	12	17	23
Body thickness (H):	11	12	14.5	17.3
