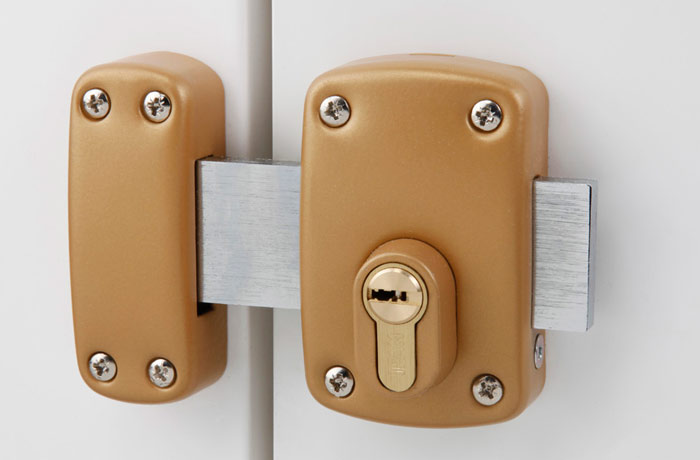

X5 rim lock

Rim lock adaptable to any standard euro-profile cylinder

The X5 security rim lock may be used with any standard euro-profile cylinder and of course, with the wide range of IFAM cylinders; WX series, RX series, M series and C series. This rim lock is ideal for doors that require changing the cylinders frequently such as the case of leased homes.

Download file technical sheet. x5 rim lock pdf 174.09 kB

Features

Body and strike:	– Made of steel.
Handle:	– Made of chromed steel. – Thickness: 9mm.
Opening / closure:	– Locking with 2 turns. – This rim lock does not include cylinder. – Available for left-hand and right-hand doors.
Packaging:	– Box packed.
Finish:	– Brown or grey epoxi paint.

Dimensions

	X5 rim lock
Body base:	60mm
Body height:	95mm
Diameter of the holes for the screws (body):	5.5mm
Distance between the holes for the screws (body):	40mm (sideways) and 70mm (vertical)
Handle length:	110mm
Handle thickness:	9mm
Cylinder diameter:	27mm
Cylinder length:	49mm
