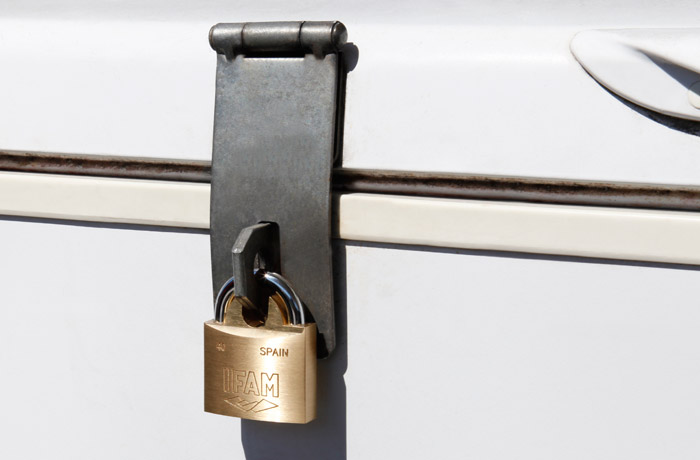

K Series padlocks
Complete versatility with five types of shackles
IFAM’s K Series brass padlocks provide an excellent and versatile security solution thanks to the five types of shackles that are available: normal, long, extra long, protected and adjustable. The quality of the IFAM finish of the body as well as the shackle and the internal components of these padlocks make it suitable for use indoors and offer a good resistance against the elements.
Download file technical sheet. k series padlocks pdf 582.70 kB
Features
Body: | – Made of extruded brass. |
Shackle: | – Made of carbon nitrate hardened and chrome plated steel. – Available in 5 shackle versions: normal, long, extra long, protected and adjustable shackle. |
Opening / Locking: | – Automatic double locking system. – Cylinder with pick proof system. – AISI 316 stainless steel springs. |
Keys: | – Standard key. – Supplied with 2 keys. – K50 padlock’s key is compatible with: D Series cylinders; Inox50, Inox Cable, Max50, Armoured Series and U Series padlocks; B5/50 rim lock; CS125 and CS126 locks. |
Packaging: | – Box and blister packed. |
Dimensions
NORMAL SHACKLE
K15 | K20 | K25 | K30 | K40 | K50 | K60 | K70 | |
Body base (A) | 17.5 | 21 | 25 | 30 | 40 | 50 | 60 | 70 |
Body height (B) | 17 | 21.5 | 22.5 | 27 | 32 | 40 | 46 | 50 |
Shackle height (C) | 11 | 13.5 | 17 | 17.5 | 22.5 | 27.5 | 33 | 41 |
Shackle diameter (D) | 3 | 3.5 | 4 | 5 | 6 | 8 | 9.5 | 11.2 |
Shackle span (L) | 8.2 | 10.5 | 13 | 15.5 | 23 | 29 | 35.5 | 40.5 |
Body thickness (H) | 8.2 | 10.5 | 11.5 | 15.5 | 14.5 | 16.5 | 19 | 21 |
LONG SHACKLE
K20AL | K25AL | K30AL | K40AL | K50AL | K60AL | |
Body base (A) | 21 | 25 | 30 | 40 | 50 | 60 |
Body height (B) | 21.5 | 22.5 | 27 | 32 | 40 | 45 |
Shackle height (C) | 23.5 | 25 | 32 | 43 | 49 | 51 |
Shackle diameter (D) | 3.5 | 4 | 5 | 6 | 8 | 9,5 |
Shackle span (L) | 10.5 | 13 | 15.5 | 23 | 29 | 35,5 |
Body thickness (H) | 10.5 | 11.5 | 15.5 | 14.5 | 16.5 | 19 |
EXTRA LONG SHACKLE
K30AEL | K40AEL | K50AEL | |
Body base (A) | 30 | 40 | 50 |
Body height (B) | 27 | 32 | 40 |
Shackle height (C) | 50 | 65 | 80 |
Shackle diameter (D) | 5 | 6 | 8 |
Shackle span (L) | 15.5 | 23 | 29 |
Body thickness (H) | 15.5 | 14.5 | 16.5 |
PROTECTED SHACKLE
K40AP | K50AP | K60AP | |
Body base (A) | 40 | 50 | 60 |
Body height (B) | 32 | 40 | 46 |
Shackle height (C) | 13.2 | 17 | 23 |
Shackle diameter (D) | 6 | 8 | 9,5 |
Shackle span (L) | 10 | 13 | 17 |
Body thickness (H) | 14.5 | 16.5 | 19 |
ADJUSTABLE SHACKLE
K50AD | |
Body base (A) | 50 |
Body height (B) | 40 |
Shackle height (C) | 17 |
Shackle diameter (D) | Adjustable |
Shackle span (L) | 13 |
Body thickness (H) | 16.5 |
Dimensions are expressed in milimeters.
Associated Services
- Master keying service.
- Keying alike service.
- Certain key number service.
- Unique key solution.
- Laser engraving service.
