E Series padlocks

Complete versatility with four shackle versions

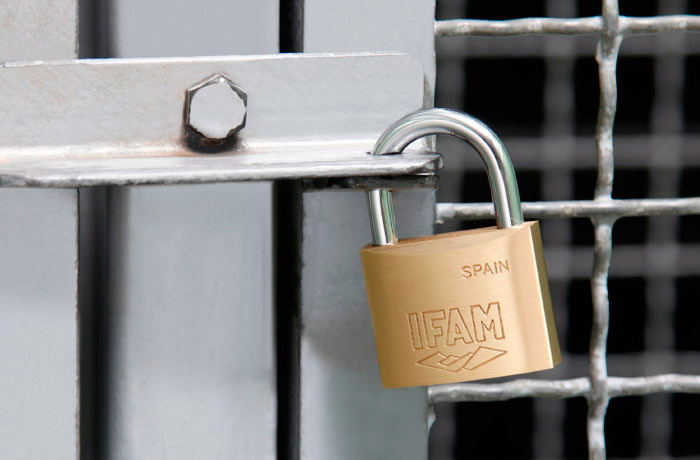

IFAM’s E Series brass padlocks provide an excellent and versatile security solution thanks to the four types of shackles that are available: standard, long, extra-long and all brass. The quality of the IFAM finish of the body as well as the shackle and the internal components of these padlocks make it suitable for use indoors and offer a good resistance against the elements outdoors.

Download file technical sheet. e series padlocks pdf 197.99 kB

Features

Body: – Made of extruded brass.
Shackle: – Made of carbon nitrate hardened and chrome plated steel.
– Available in 4 shackle versions: standard, long, extra long and all brass shackle.
Opening / Locking: – Automatic double locking system.
– Cylinder with pick proof system.
– Stainless steel springs.
Keys: – Standard key.
– Supplied with 2 keys.
– E50 padlock’s key is compatible with: Mar 50,60, E Series 60,70, Mar Cable and U Series padlocks; B5 rim lock, F5S Euro Cylinder.
Packaging: – Box and blister packed.

Dimensions

STANDARD SHACKLE

E15 E20 E25 E30 E40 E50 E60 K70
Body base (A) 16.5 20 25 30 40 50 60 70
Body height (B) 18 19 24.5 27.5 33 40 46 51
Shackle height (C) 11.5 11.5 14 16.5 23 28 34 44
Shackle diameter (D) 3 3 4 5 6 8 9.5 12
Shackle span (L) 8 9 12.5 15.5 22 29 35.5 40



LONG SHACKLE

E20LS E25LS E30LS E40LS E50LS
Body base (A) 20 25 30 40 50
Body height (B) 19 24.5 27.5 33 40
Shackle height (C) 21.5 24 32 38.5 49.5
Shackle diameter (D) 3 4 5 6 8
Shackle span (L) 9.5 12.5 15.5 22 29



EXTRA LONG SHACKLE

E40ELS E50ELS
Body base (A) 40 50
Body height (B) 33 40
Shackle height (C) 65 82
Shackle diameter (D) 6 8
Shackle span (L) 22 29



ALL BRASS SHACKLE

E40AB50 E40AB75
Body base (A) 40 50
Body height (B) 33 40
Shackle height (C) 50 75
Shackle diameter (D) 6 8
Shackle span (L) 22 29

Dimensions are expressed in milimeters.

Associated Services

  • Master keying service.
  • Unique key solution.
