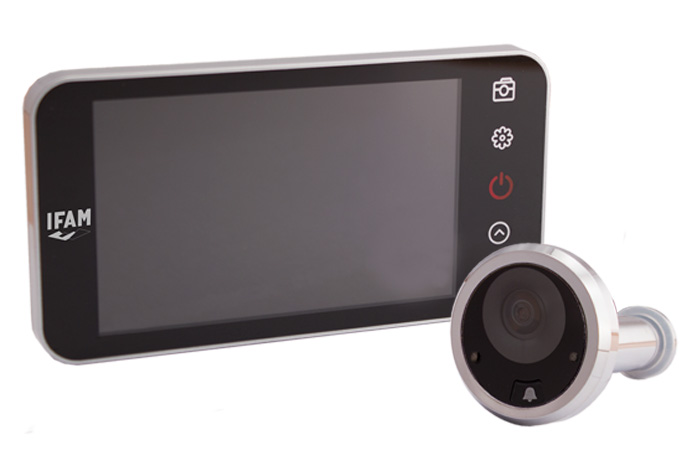

Sentinel 4.0 digital door viewer

High-tech, mutifunctional, nicely designed digital door viewer

The IFAM’s Sentinel 4.0 digital door viewer has it all. Thanks to its cutting edge technology, a great image quality is granted as well as a wide arrange of functions: night vision, photo camera with up to 1GB of memory, door bell… Anda ll this with an elegante, compact and really light design.

Features

Screen:	– 4.0” LCD screen with a 800×480 resolution.
Optics:	– Great image quality. – 2.0 megapixel CMOS sensor. – Wide vision angle: 160 degrees.
Door thickness:	– Suitable for doors of 42 to 72 mm thick.
Other features:	– Night vision function. – Photo camera. Memory: 1 GB – Door bell function. – Low energy consumption: powered by 3 AAA batteries, lifespan of 3,000 activations. The screen switches off automatically after 15 seconds. – Ultra-slim design: 1.7 cm thick and weighing 240 g. – Easy installation.
Finishes:	– Nickel and brass.
Packaging:	– Box packed.

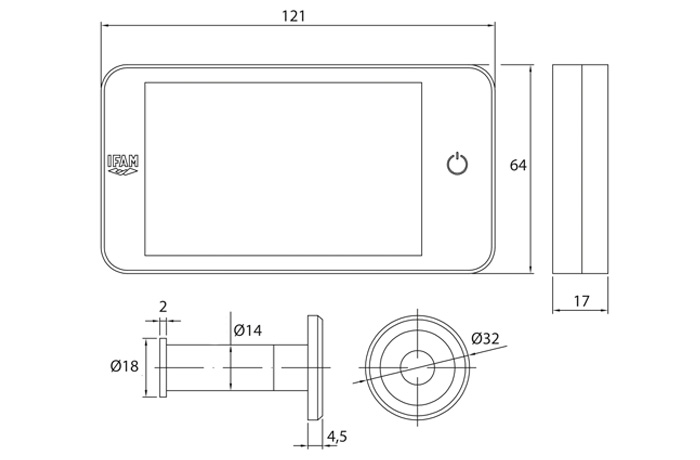

Dimensions

	Sentinel 4.0 digital door viewer
Screen base:	121 mm.
Screen height:	64 mm.
Screen thickness:	17 mm.
Camera’s outer diameter (trim included):	32 mm.
Thickness of camera´s trim:	4,5 mm.
Diameter of the camera’s cylinder (to take into account regarding the door´s hole):	14 mm.
